This dump truck is equipped with an electronically controlled engine and an automatic transmission,with more convenient control and higher efficiency; Large tonnage engineering axles as well as engineering-specific tires and a 50m large volume container with large load capacity.
Adopt the whole machine optimization design scheme of Tonly core technology,with stable performance,reliable quality and attendance rate of above 90%.

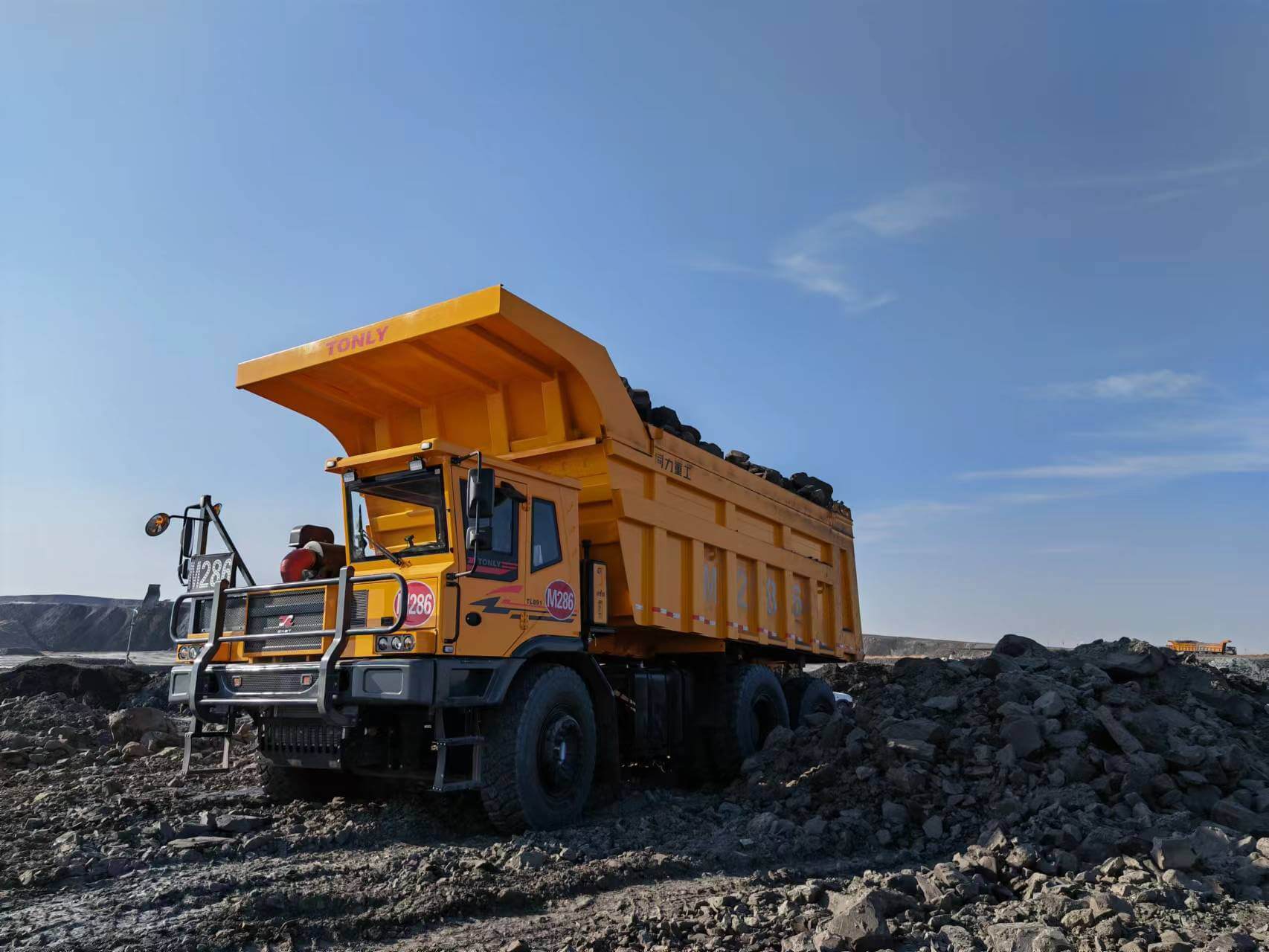

TL891 Mining Dump Truck
Technical
Parameters
| Overall parameters | Model | TL891 |
| Brand | Tonly | |
| Drive mode | 6×4 | |
| GVW (t) | 135 | |
| Rated payload (t) | 90 | |
| Kerb weight (t) | 45 | |
| Dimensions (mm) | 10250×3966×4287 | |
| Wheelbase (mm) | 4175+1900 | |
| Wheel track (mm) | 3039/2810 | |
| Minimum ground clearance (mm) | 410 | |
| Minimum turning radius (m) | 12 | |
| Maximum height of bucket lift (mm) | 10011 | |
| Maximum angle of bucket lift (°) | 48 | |
| Loading height (mm) | 4164 | |
| Braking distance (m) | 18 | |
| Maximum climbing degree (%) | 30 | |
| Maximum speed (km/h) | 45 | |
| Engine | Model | QSM15-770-30 |
| Manufacturer / Country | DCEC/China | |
| Power (hp/kw) | 770/566 | |
| Transmission | Model | 8DS280 |
| Manufacturer / Country | Fast/China | |
| Input torque (N·m) | 2100 | |
| Axle | Manufacturer / Country | Hande/China |
| Load/T | 30+50+50 | |
| Tires / Rims | Tire model | 480/95R29 |
| Rim size | 13.00/2.5-29 | |
| Container | Base plate material/thickness (mm) | NM400/16 |
| Rear plate material/thickness (mm) | NM400/12 | |
| Front plate material/thickness (mm) | T700/12 | |
| Side plate material/thickness (mm) | T700/10 | |
| Container volume (m³) | 50 | |
| Hydraulic system | Model | FEA214 |
| Manufacturer / Country | HYVA/China | |
| Steering device | Hydraulic steering | |
| Lifting time (s) | 24 | |
| Discharge time (s) | 24 | |
| Weight distribution | Empty load | |
| Front axle (kg) | 15000 | |
| Rear axle (kg) | 30000 | |
| Total weight (50% fuel) (kg) | 45000 | |
| Loaded | ||
| Front axle (kg) | 30000 | |
| Rear axle (kg) | 105000 | |
| Total weight (kg) | 135000 | |
