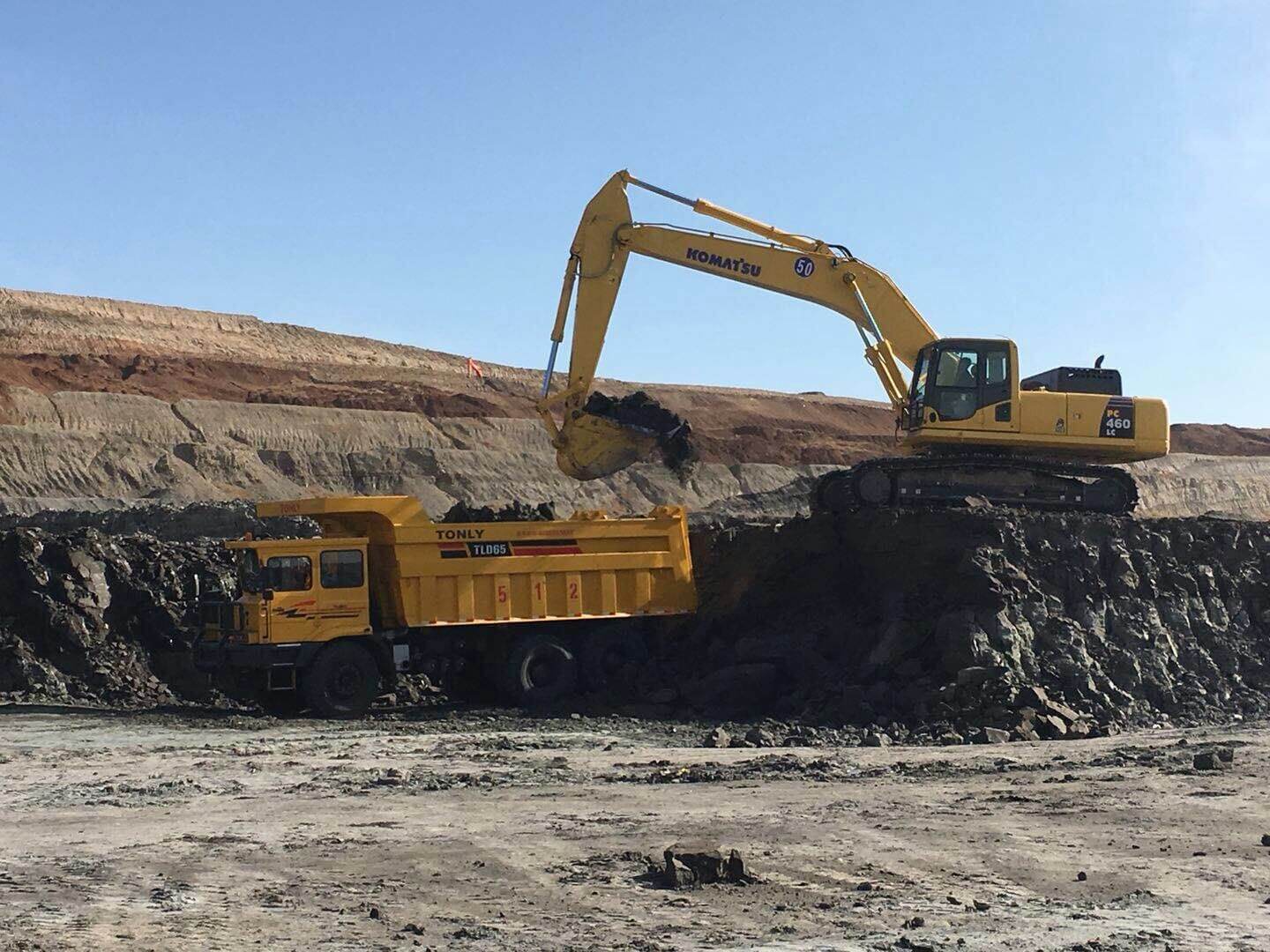

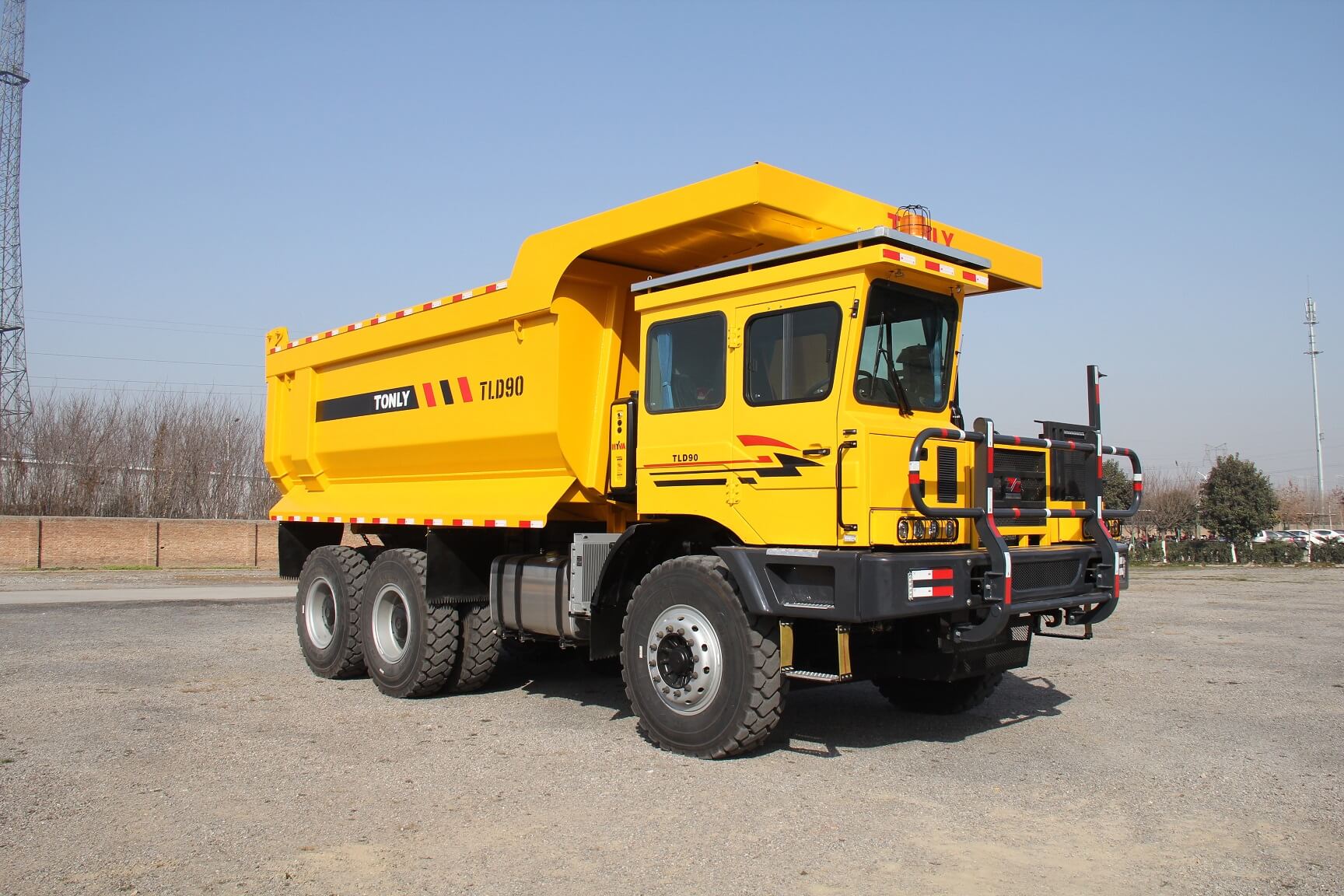

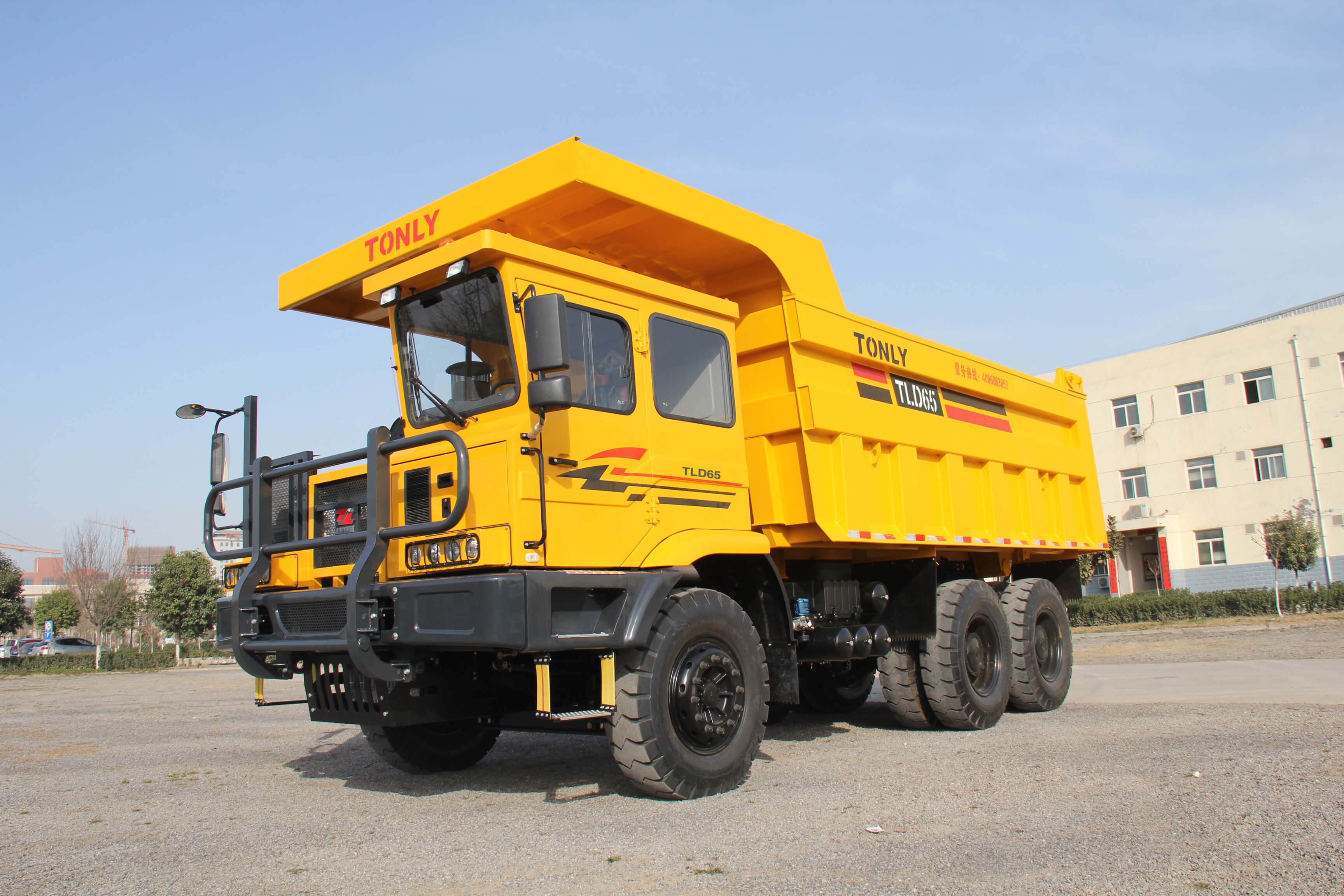

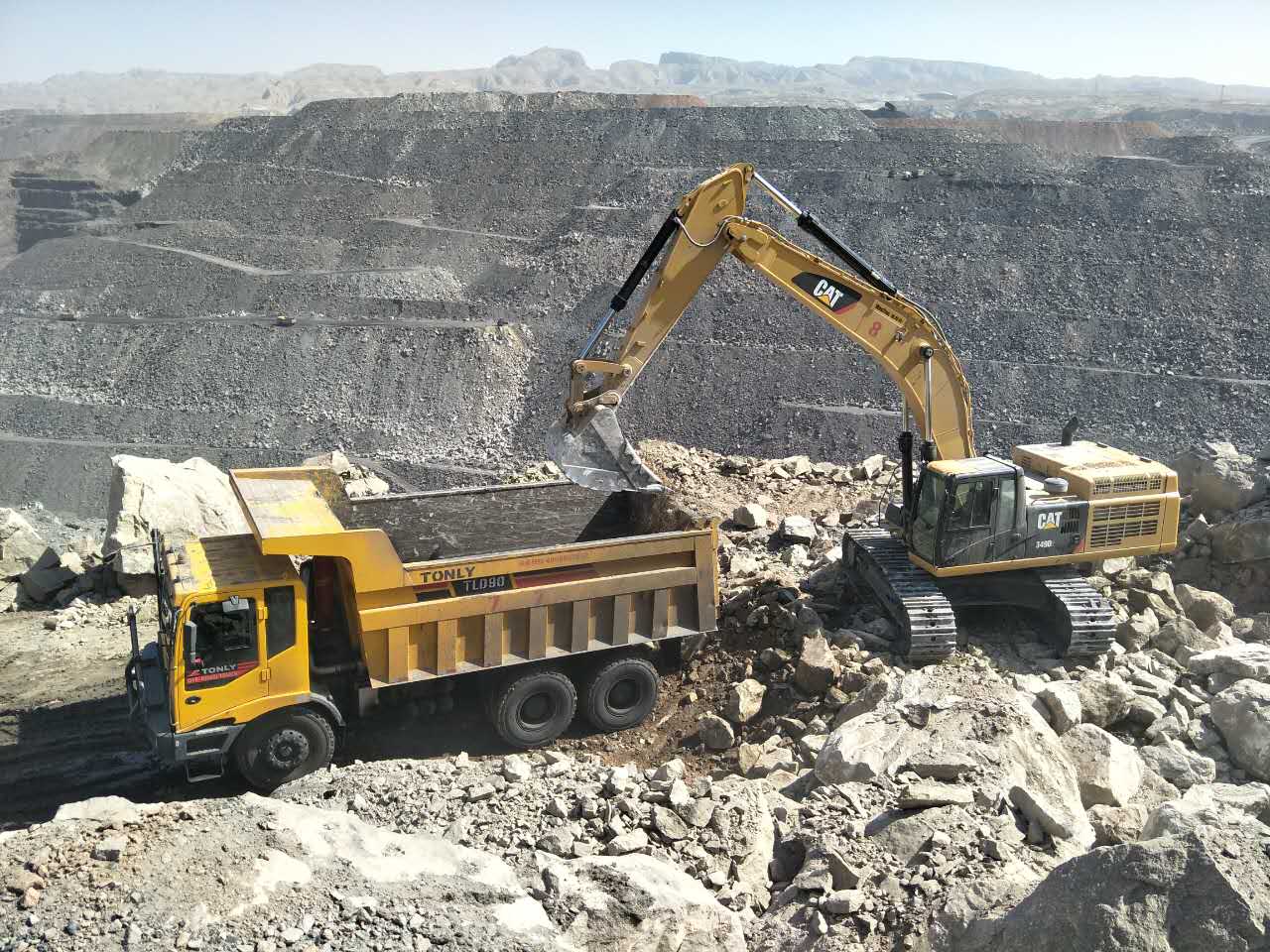

TLD series is our automatic mining dump truck, with two kinds of models TLD65 (40 tons) ,TLD90 (60 tons) and TLD96B (72 tons)
Product
Features
The fourth generation mining dump truck (Tonly D series products) is the new product that is deeply researched, developed and manufactured leanly by Tonly. According to the industrial standards in the spirit of sticking to centering on the new market structure, new client demand and mine construction technology. Such product has the new breakthrough in the aspects of automation, informatization and full life circle quality, making the technical standards of the product rise to a new level.
Tonly D series products apply to mining dump truck information management system with the high informatization management integration level.
It can change the speed automatically with the automatic control – more comfortable.
The continuous power flexible transmission is achieved and the transportation efficiency is improved by more than 20%, thus the transportation is more efficient.
The active safety and passive safety are improved comprehensively, thus the product is safer.
The reliability within the full life circle is upgraded, thus the service life is longer.
Technical
Parameters
| Overall parameters | Model | TLD65 | TLD90 | TLD93B |
| Brand | Tonly | |||
| Drive mode | 6×4 | 6×4 | 6×4 | |
| GVW (t) | 65 | 90 | 107 | |
| Rated payload (t) | 40 | 60 | 72 | |
| Kerb weight (t) | 25 | 30 | 35 | |
| Dimensions (mm) | 8895×3220×3800 | 9500×3650×3715 | 9927×3760×4280 | |
| Wheelbase (mm) | 3600+1500 | 4075+1550 | 4075+1750 | |
| Wheel track (mm) | 2442/2252 | 2680/2500 | 2790/2500 | |
| Minimum ground clearance (mm) | 305 | 305 | 400 | |
| Minimum turning radius (m) | 10.5 | 11 | 11 | |
| Maximum height of bucket lift (mm) | 7650 | 7830 | 8800 | |
| Maximum angle of bucket lift (°) | 50 | 50 | 48 | |
| Loading height (mm) | 3800 | 3975 | 3840 | |
| Braking distance (m) | 12 | 14 | 14 | |
| Maximum climbing degree (%) | ≥36 | ≥32 | ≥32 | |
| Maximum speed (km/h) | 40 | 40 | 49 | |
| Engine | Model | WP13G430E310 | WP13G530E310 |
QSZ14-C560-30 |
| Manufacturer / Country | CDEC/China | Weichai/China | CDEC/China | |
| Power (hp/kw) | 430/316 | 530/390 | 560/412 | |
| Transmission | Model | FC6A210DPRT | FC6A250DPRT | FC6A250DPRT |
| Manufacturer / Country | Xi’an FC/China | Fast/China | ||
| Axle | Manufacturer / Country | Hande/China | ||
| Load/T | 13+25+25 | 20+35+35 | 25+40+40 | |
| Tires / Rims | Tire model | 14.00-25 | 14.00-25 | 16.00-25 |
| Rim size | 10.0/2.0-25 | 10.0/2.0-25 | 11.25/2.0-25 | |
| Container | Base plate material/thickness (mm) | T700/16 | NM400/16 | NM400/16 |
| Rear plate material/thickness (mm | T700/12 | NM400/12 | NM400/12 | |
| Front plate material/thickness (mm) | T700/10 | T700/10 | T700/10 | |
| Side plate material/thickness (mm) | T700/10 | T700/10 | T700/10 | |
| Container volume (m³) | 25 | 30 | 36 | |
| Hydraulic system | Model | FC179 | FC191 | FC191 |
| Manufacturer / Country | HYVA/China | |||
| Steering device | Dual steering | Fully hydraulic steering | Fully hydraulic steering | |
| Lifting time (s) | 23 | 25 | 25 | |
| Discharge time (s) | 23 | 25 | 25 | |
| Weight distribution | Empty load | |||
| Front axle (kg) | 10000 | 10000 | 12000 | |
| Rear axle (kg) | 15000 | 20000 | 24000 | |
| Total weight (50% fuel) (kg) | 25000 | 30000 | 36000 | |
| Loaded | ||||
| Front axle (kg) | 15000 | 20000 | 25000 | |
| Rear axle (kg) | 50000 | 70000 | 80000 | |
| Total weight (kg) | 65000 | 90000 | 105000 | |
